About This Product:
Penguin Chillers offers a line of fully submersible Glycol Pumps for use with our Glycol Chillers and Tubing. When setting up a Glycol Chiller, standard practice is to use one pump per fermenter or vessel that you wish to cool.
In this setup, each pump is plugged into its own glycol pump controller. Each controller independently monitors the fermenter or vessel temperature and turns the pump on and off accordingly to regulate temperature. The controller on the glycol chilling unit regulates the temperature in the glycol reservoir, helping ensure cold glycol is available as needed to cool the fermenters.
Our pumps work well for brewers that cycle their pumps on and off or choose to run them longer during a cold crash.
Compare available Glycol Pump options by power, max flow, barb adapter size, head height, and overall dimensions.
| Model | Voltage / Power | Max Flow | Barb Adapter | Head Height Max | Dimensions (W x D x H) |
|---|---|---|---|---|---|

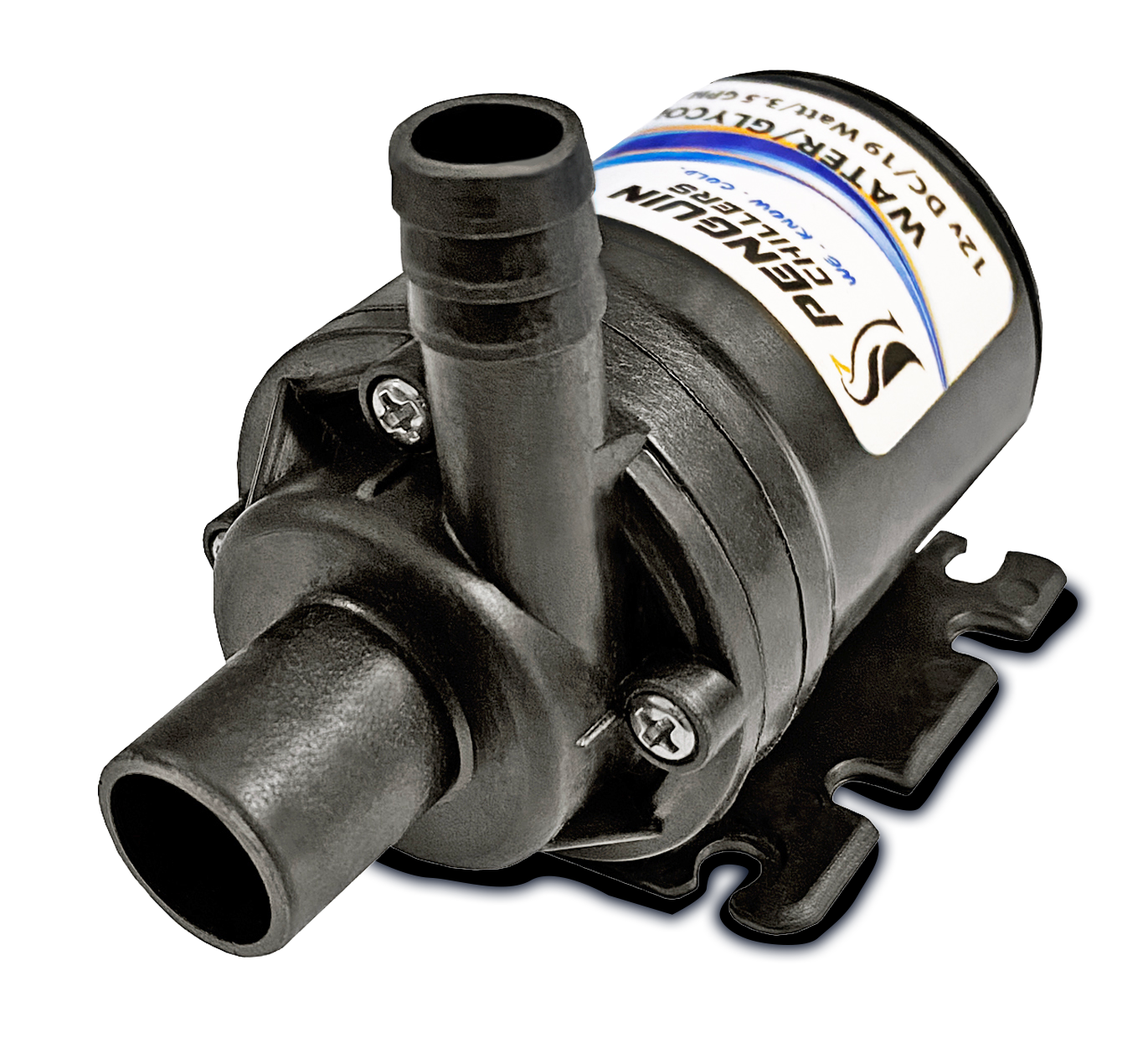

| Standard Pump | 12v DC / 19w | 3.5 GPM max | 3/8″ Barb Adapter | 16′ Head Height Max | 1.65″W / 3.1″D / 2.5″H |
| XL Pump | 24v DC / 60w | 6.3 GPM max | 3/8″ or 1/2″ Barb Adapters | 32′ Head Height Max | 2.35″W / 3.65″D / 4.30″H |
