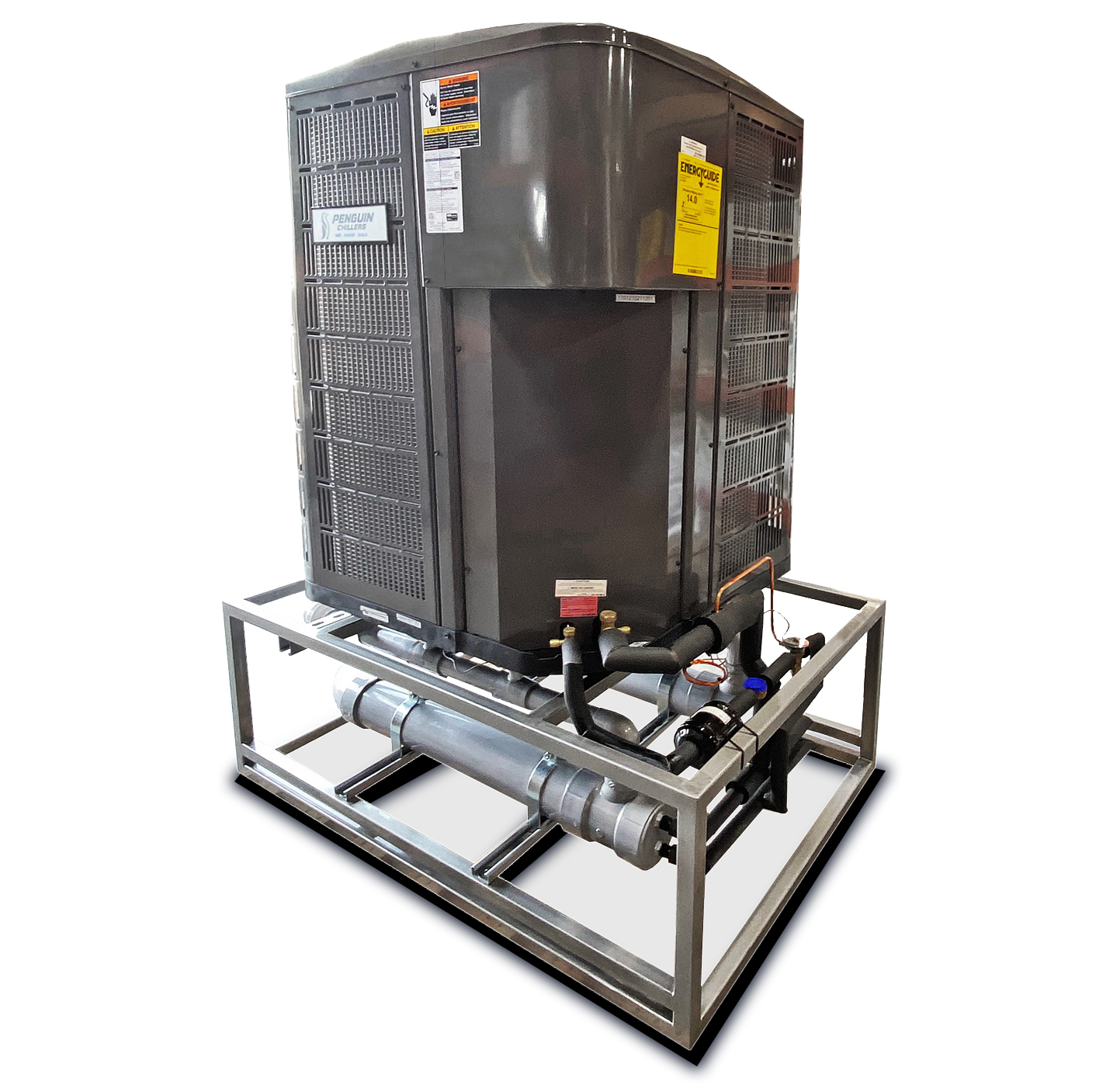

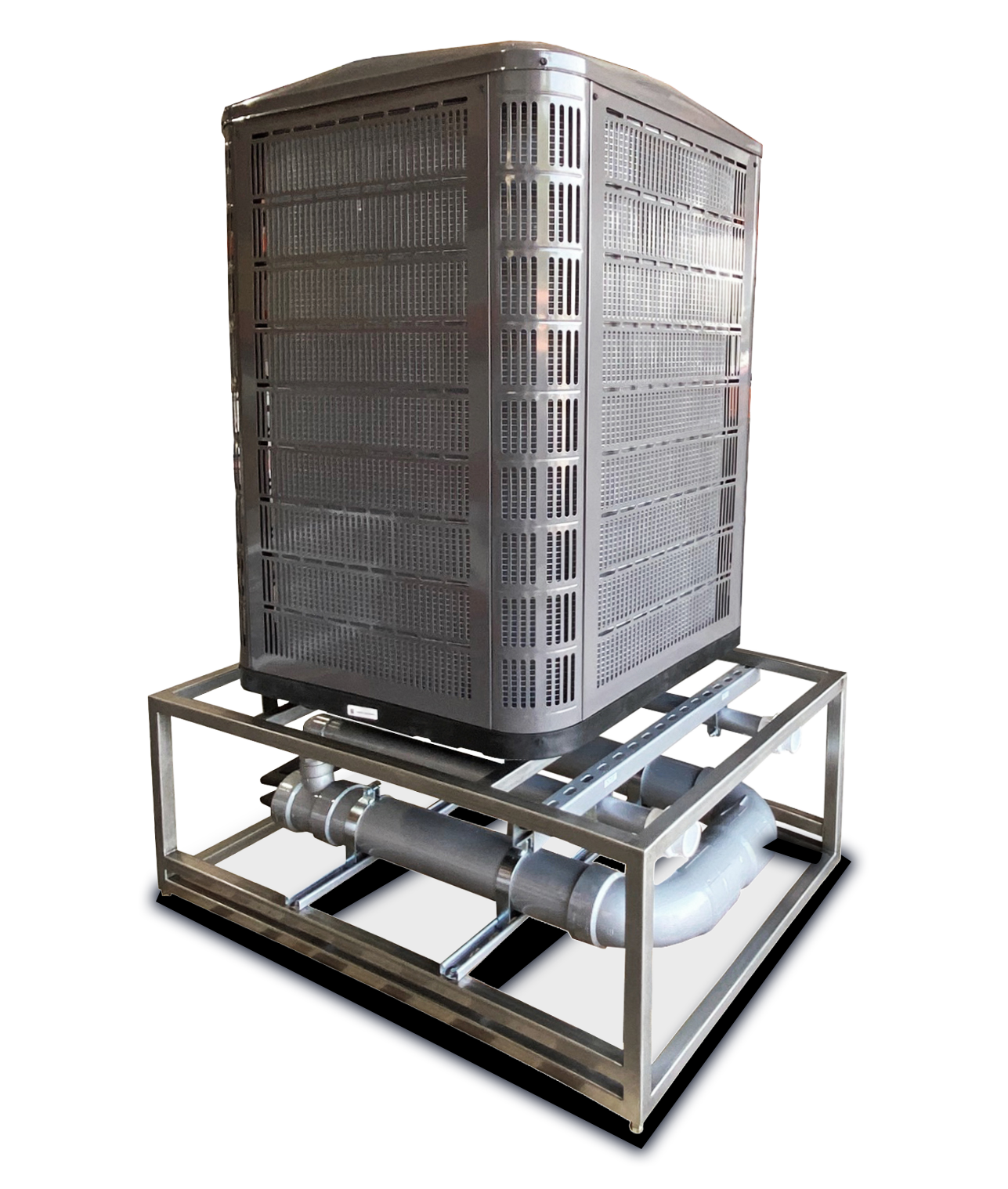

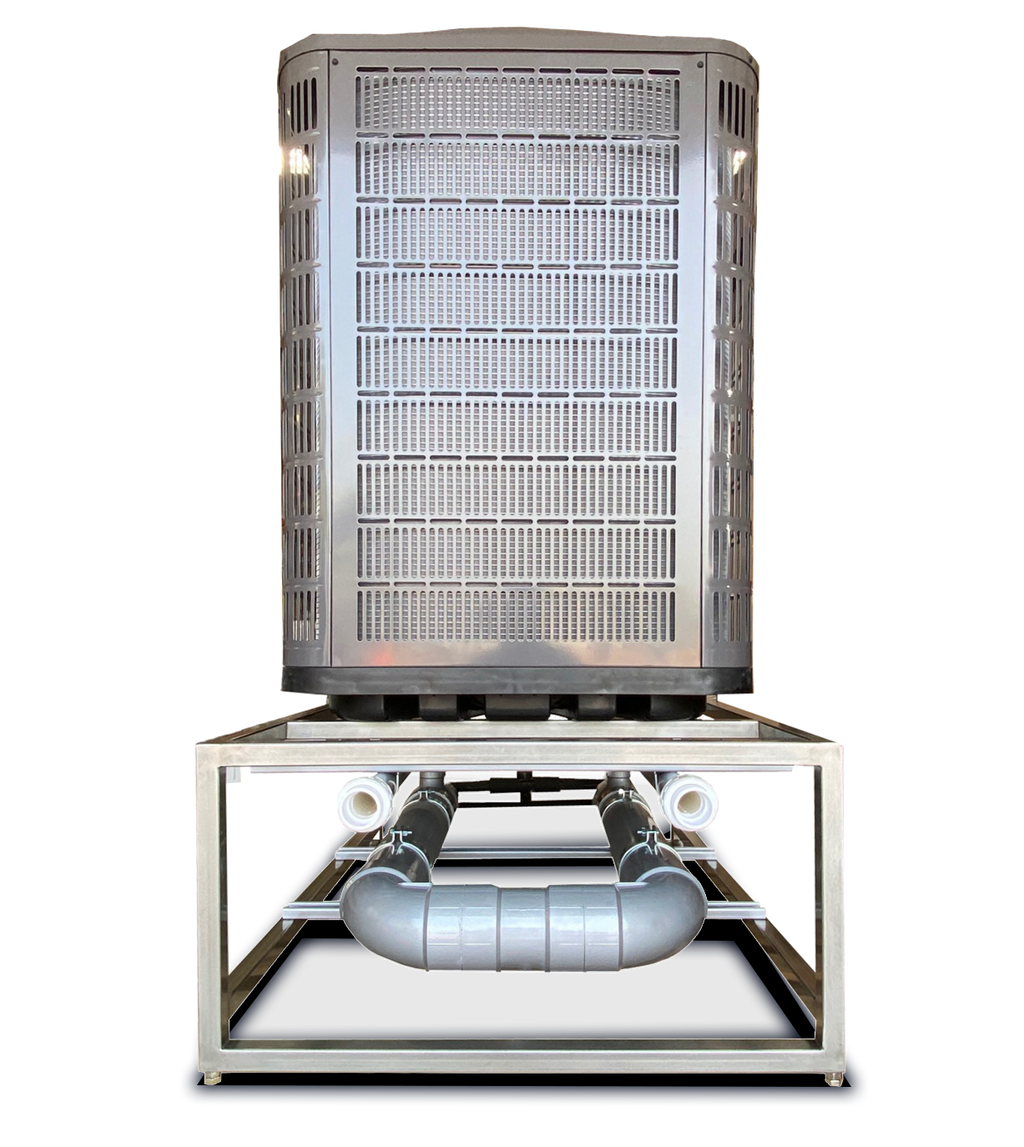

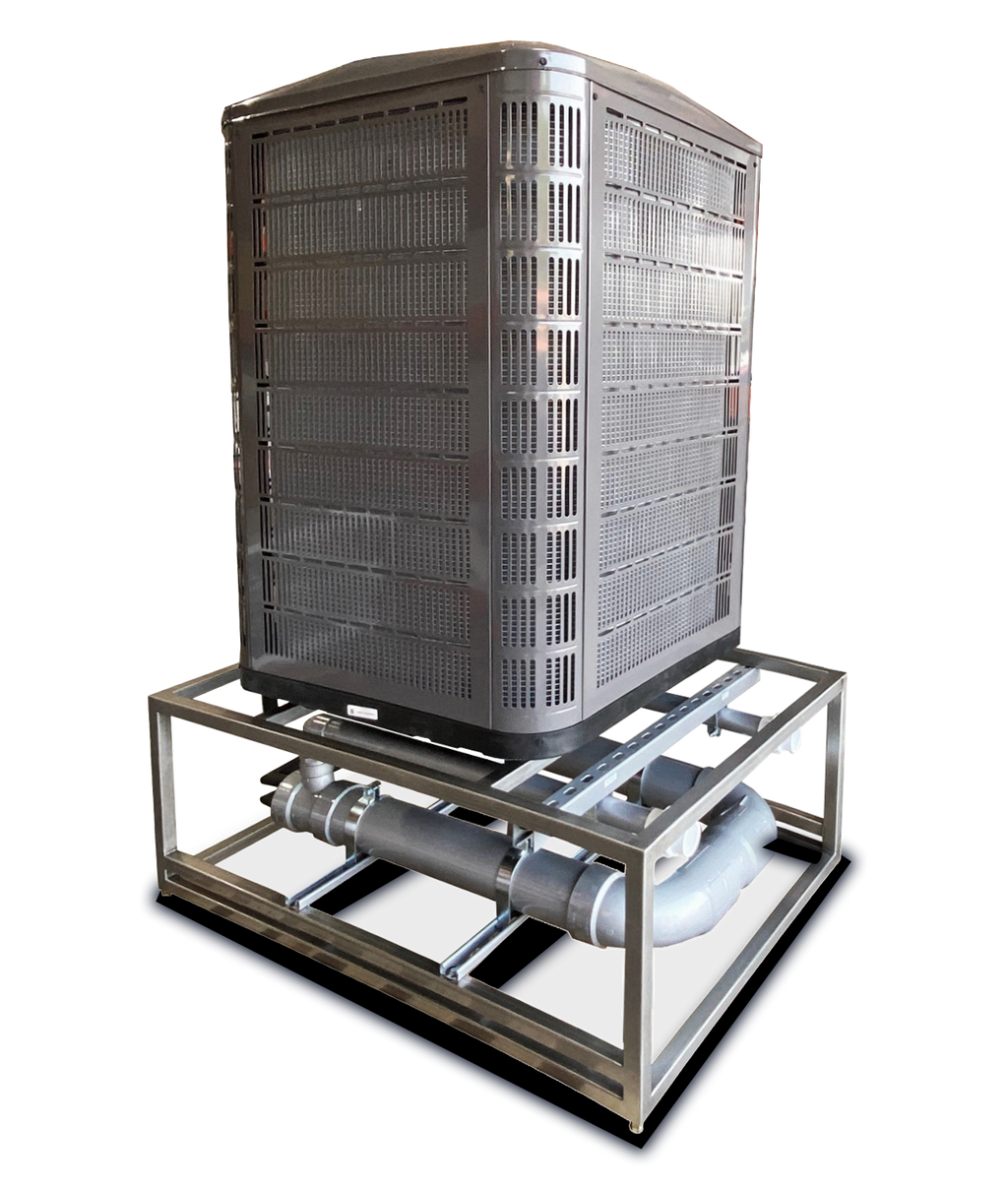

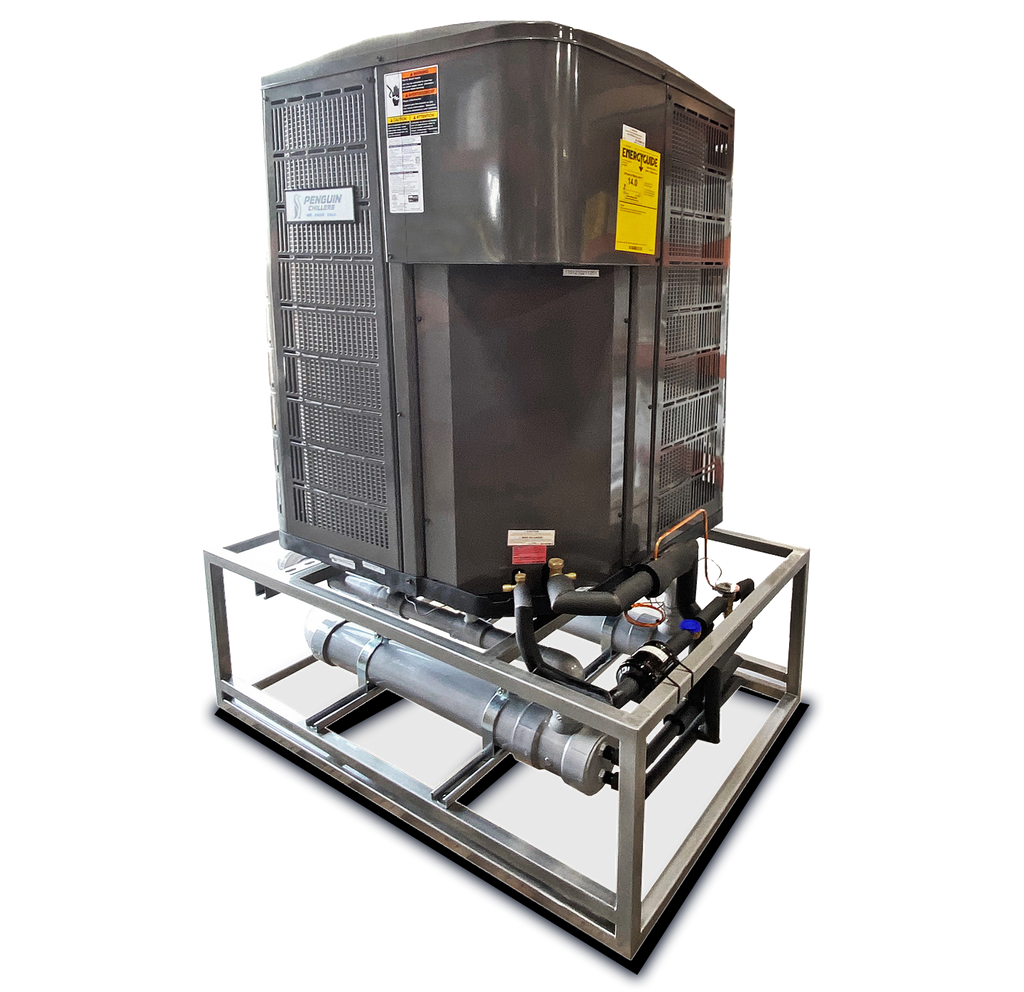

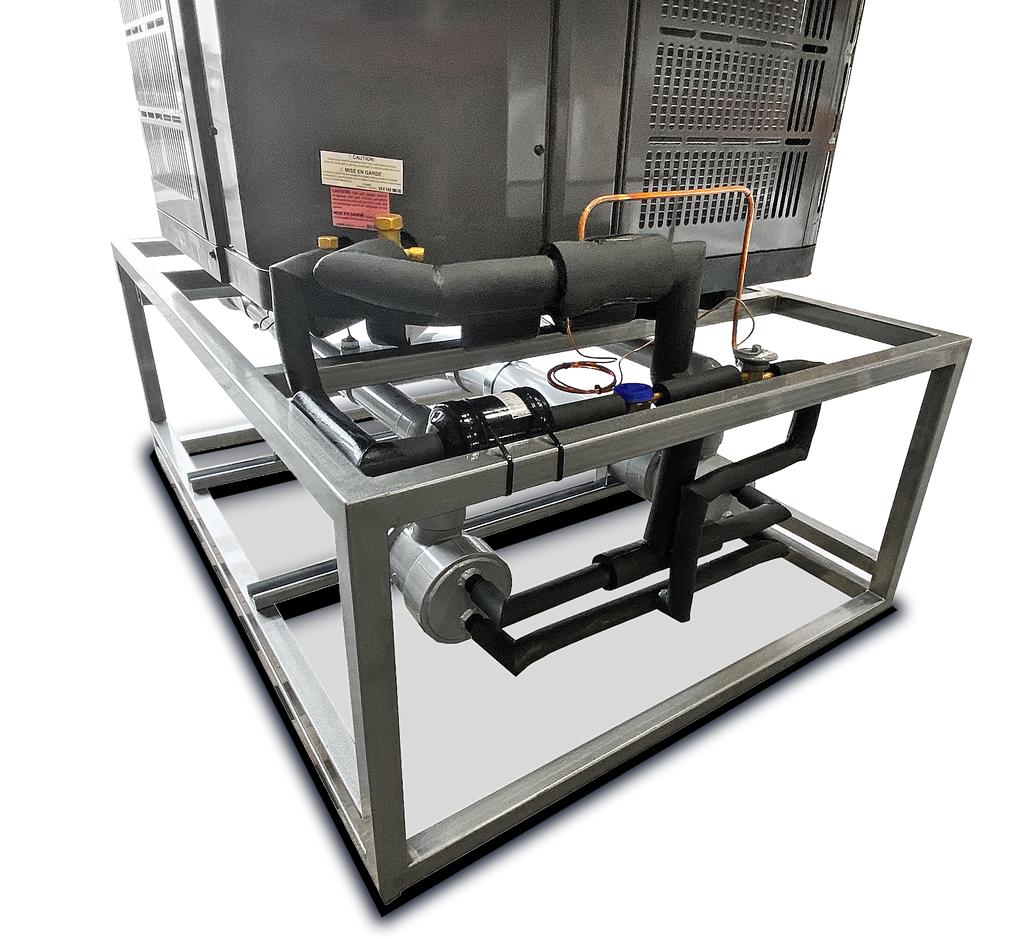

2.0 Ton Commercial Water Chillers

Recommended Pump: Danner Magnetic Drive 2400 GPH – 3600 GPH

• Other pumps may be acceptable, however they must be rated for less than 10 PSI max pressure (for PVC shell heat exchanger only).
• If you’re using a pool/spa pump or another pump rated in horsepower, check compatibility before installation. (for PVC shell heat exchangers only)
• There is often a simple workaround that allows our chillers to cool higher pressure systems successfully. please contact support for more information.

Controller Notes

• The controller constantly monitors your system’s incoming water temperature, therefore water flow is needed at all times to read current temperatures accurately.
• When your water temperature rises above your desired set point, the controller tells the compressor to turn on and begin cooling.
• Once your desired set point temperature is reached, the compressor will turn off.

Manufacturer Guidelines:

• Outdoor rated / pad mount ready: Install on a stable, level surface with adequate clearance for airflow.
• Continuous water flow is required for proper temperature monitoring and operation.
• Units include a built-in flow switch designed to disable the chiller in the event of pump failure.
• PVC shell pressure guidance: If you’re using a pump capable of higher pressures (often pumps rated in HP), verify compatibility before installation.
• Copper option notice: Copper heat exchangers are not recommended for closed loop reef/aquarium applications. Choose titanium for reef-safe systems.
• Condensation may occur depending on operating temperature and ambient humidity; plan your installation accordingly.
