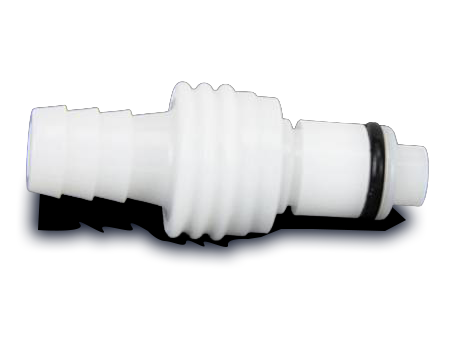

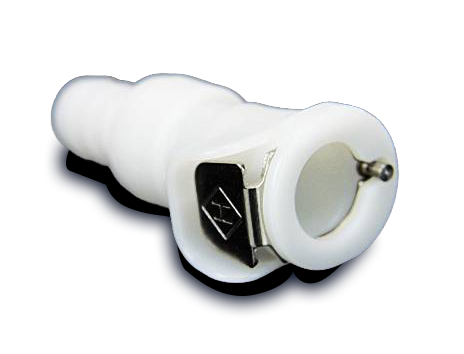

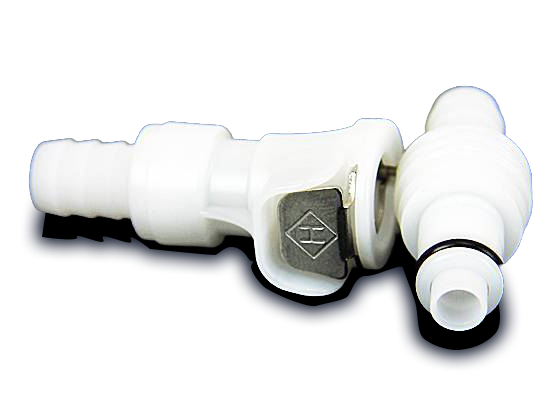

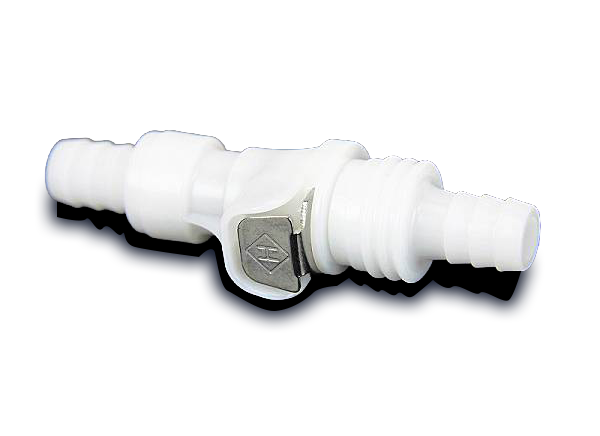

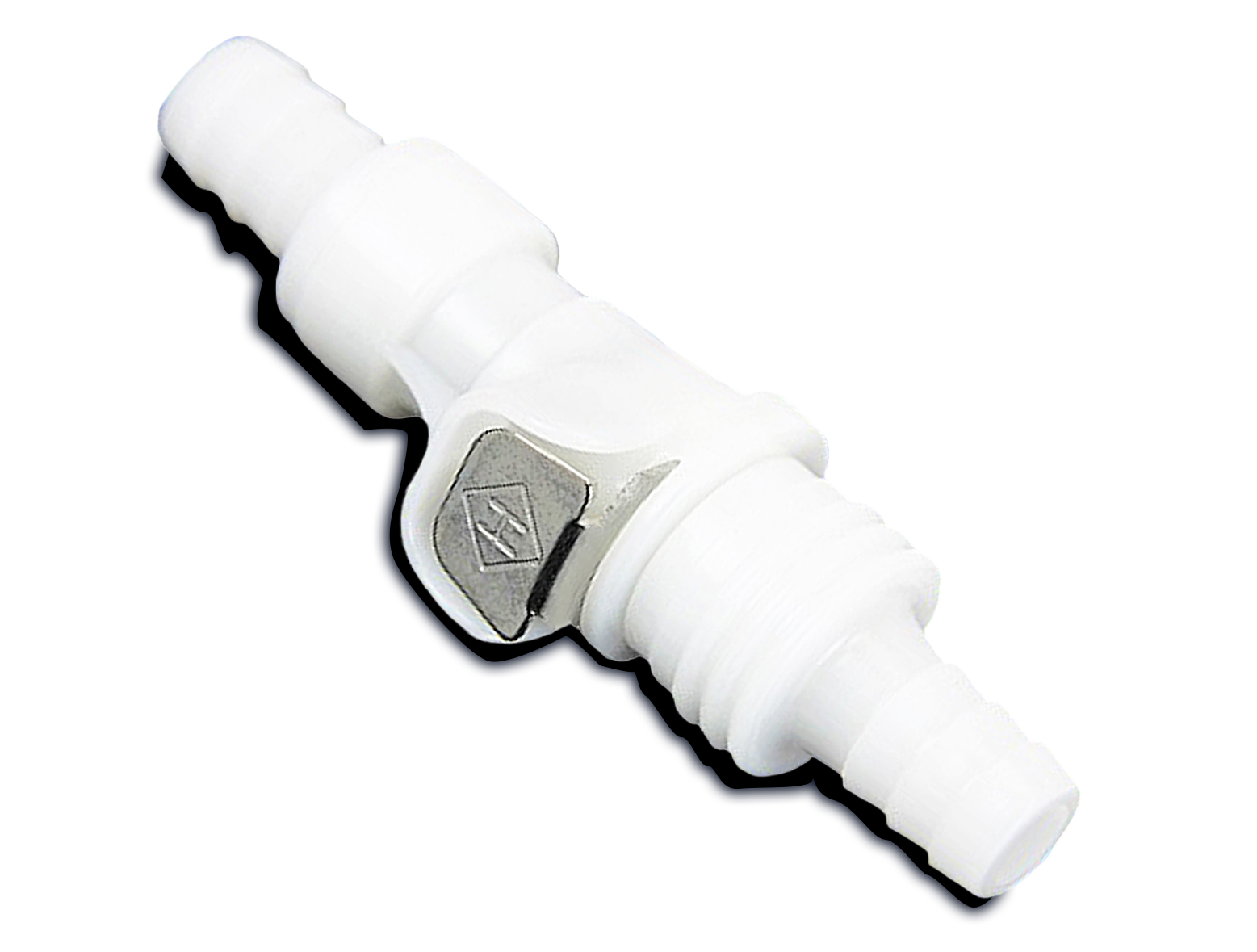

Silicone Tubing Quick Disconnects
Silicone Tubing Quick Disconnects

Silicone Tubing Quick Disconnects

$44.99

Free Shipping on Orders Over $249 (Continental 48 States)

  • Barbed Quick Disconnects
  • Auto Shutoff when disconnected
  • Come as a set (1 Male + 1 Female)
Size

About This Product:

Silicone Tubing Quick Disconnects are a fast and efficient way to disconnect pumps from chillers. Their stainless steel, shrouded thumb latch allows for easy one-handed connection and disconnection while helping protect against accidental disconnects.

These quick disconnects also feature spring-loaded valves that close immediately when disconnected, helping prevent glycol from spilling during the disconnection process.

Silicone Tubing Quick Disconnect Set

This product includes 1 Male + 1 Female barbed quick disconnect. Tubing, barbed adapter fittings, pumps, chillers, and additional accessories are sold separately unless otherwise noted.

More Info:

Quick Disconnect Specs
  • Material: White Acetal with Buna-N O-rings
  • Spring & Latch: 316 SS Spring & Latch
  • Thumb Latch: Stainless Steel Thumb Latch
  • Design: Integrated Terminations for fewer leak points
  • Pressure Rating: Vacuum to 120 PSI, 8.3 bar
  • Temperature Rating: -40°F to 180°F (-40°C to 82°C)
  • Connection: Clicks to assure a reliable connection
  • Standards: Meets FDA & USDA standards
Available Sizes
  • The 3/8″ quick disconnect has fittings for use with the 3/8″ silicone tubing.
  • The 1/2″ quick disconnect has fittings for use with the 1/2″ silicone tubing.
Pump Compatibility
  • The Standard Pump only uses the 3/8″ Barbed Adapter Fitting, the 3/8″ Silicone Tubing, and the 3/8″ Silicone Tubing Quick Disconnect.
  • The XL Pump can use either the 3/8″ or the 1/2″ Barbed Adapter Fitting, Silicone Tubing, and the Silicone Tubing Quick Disconnect.
Performance Details
  • Spring-loaded valves close immediately when disconnected, helping prevent glycol from spilling.
  • Rated for vacuum to 120 PSI (8.3 bar).
  • Rated for temperatures from -40°F to 180°F (-40°C to 82°C).

Manufacturer Guidelines

Important Use Notes
  • The Silicone Tubing Quick Disconnect is designed for use between two pieces of spliced tubing.
  • You will need a single Barbed Adapter Fitting to connect your tubing directly to your Glycol Pump, and another fitting to connect the other end of tubing to your Chiller.
  • Because of fewer moving parts and a smooth contoured design, quick disconnects offer ease of use and excellent flow in a compact size.
  • Integral terminations create fewer leak points and shorter assemblies, helping allow for faster installations.
  • Quick Disconnects are often preferred for their ease of use and reliability.
