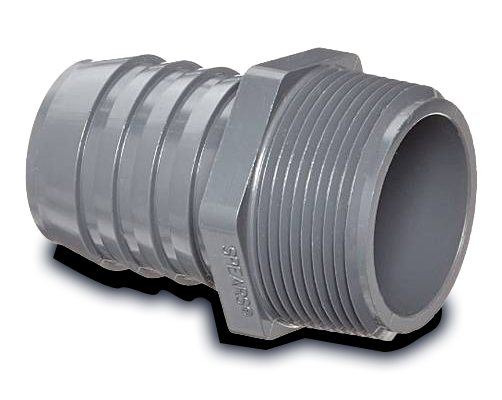

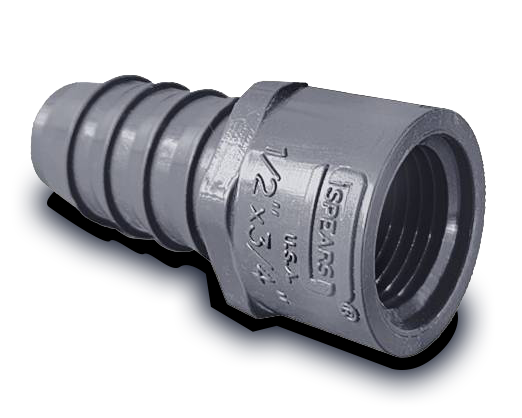

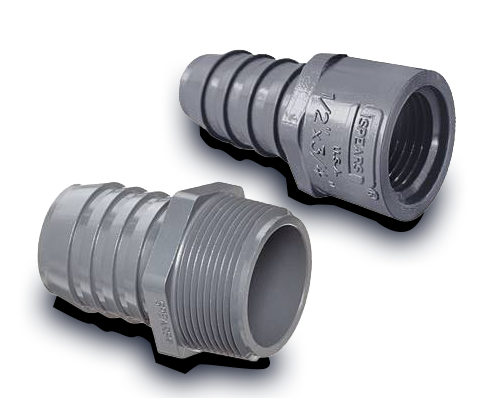

Barbed Adapter Fittings for Water Pump / Vinyl Tubing

Product Overview

• Application: Connects Vinyl Tubing to Water Pumps and Water Chillers

• Use Case: Used to plumb a Pump to a Chiller

• Quantity Needed per System: 3 Adapters Total


Per Chiller: 2 Adapters
Per Pump: 1 Adapter

Important Use Notes

• Barbed Adapter Fittings are used to connect Vinyl Tubing to the Water Pump and Chiller.

• You will need 3 Adapters total to plumb a Pump to a Chiller.

• This includes 2 fittings for the Chiller and 1 fitting for the Pump.

• Please review the Pump / Fitting Match Guide above to select the correct fitting for your pump and tubing combination.


Additional Accessories Available

• Water or Glycol Pumps

• Quick Disconnects

• Vinyl or Silicone Tubing

• Propylene Glycol

• Pump Controller

• Accessory Packages


Pump / Fitting Match Guide

For Chiller Connection (Need 2 per Chiller)

• 1″ MPT x 3/4″ barb for connecting to 3/4″ vinyl tubing

• 1″ MPT x 1″ barb for connecting chiller to 1″ vinyl tubing


For Danner 5 (500 GPH) Pump (Need 1 per Pump)

• 1/2″ FPT x 3/4″ barb for connecting pump to 3/4″ vinyl tubing

• 1/2″ FPT x 3/4″ MPT Bushing + 3/4″ FPT x 1″ barb for connecting pump to 1″ vinyl tubing


For Danner 9 (950 GPH) & 18 (1800 GPH) Pumps (Need 1 per Pump)

• 3/4″ FPT x 3/4″ barb for connecting pump to 3/4″ vinyl tubing

• 3/4″ FPT x 1″ barb for connecting pump to 1″ vinyl tubing


For Danner 24 (2400 GPH) & 36 (3600 GPH) Pumps (Need 1 per Pump)

• We do not recommend using 3/4″ tubing with these pumps.

• 1″ FPT x 1″ barb for connecting pump to 1″ vinyl tubing
